“DGT20”: BENCH DIGITAL WEIGHT TRANSMITTER/INDICATOR

Product Description

“Dini Argeo “

DGT20 Bench Digital Weight Transmitter / Indicator

Multipurpose weight transmitter ideal for the production of bench or floor scales, dosage, filling systems etc. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.


Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval


Integrated WebServer as standard


MAIN FEATURES

  • Easy to use 5-key waterproof keyboard.

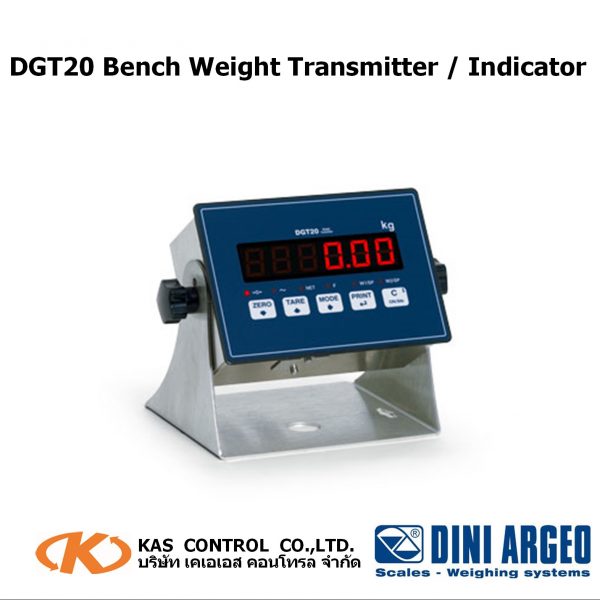

  • Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
  • Stainless steel protective case.
  • Frontal panel in alluminium, with protection gasket.

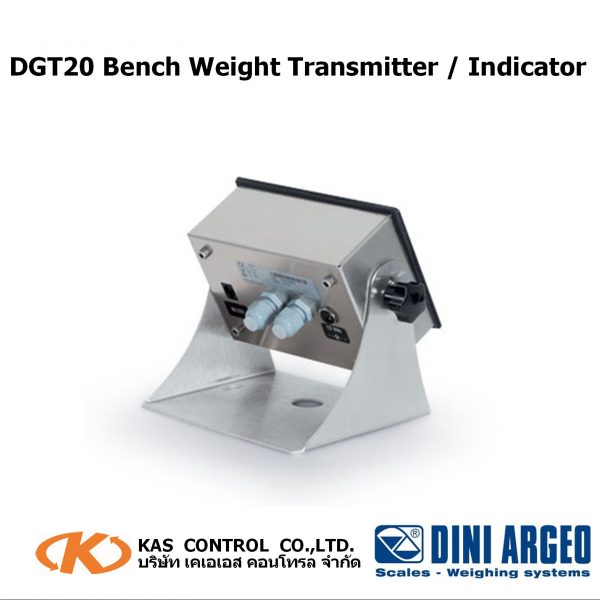

  • Dimensions 170x115x68mm, fitted with support bracket (168x150mm) for table or wall mounting.
  • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
  • Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
  • Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
  • Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
  • Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
  • From 12 Vdc to 24 Vdc power supply; 12Vdc power adapter included.

MAIN CERTIFICATIONS

  • CE-M EN 45501
  • OIML R76
  • OIML R61 – MID
  • OIML R51
  • Australian legal for trade certificate of approval (NMI S788)
I/O SECTION
  • RS232/C bidirectional port (RJ11 connector) configurable for connection with external units.
  • RS485 bidirectional port configurable for network connection (Mod. DGT20 / DGT20AN).
  • 2 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
  • 16-bit analogue output (DGT20AN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.
  • Available in version with Profibus, Profinet, EthernetIP, EtherCAT and Modbus TCP/IP fieldbus.
