Product Description

” Dini Argeo “

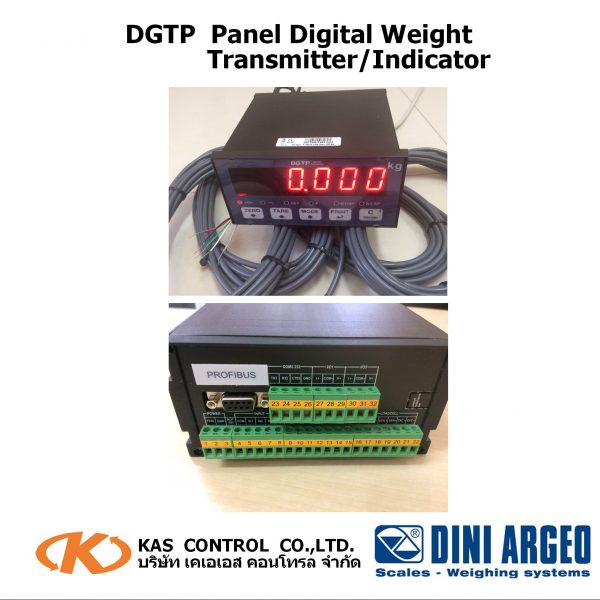

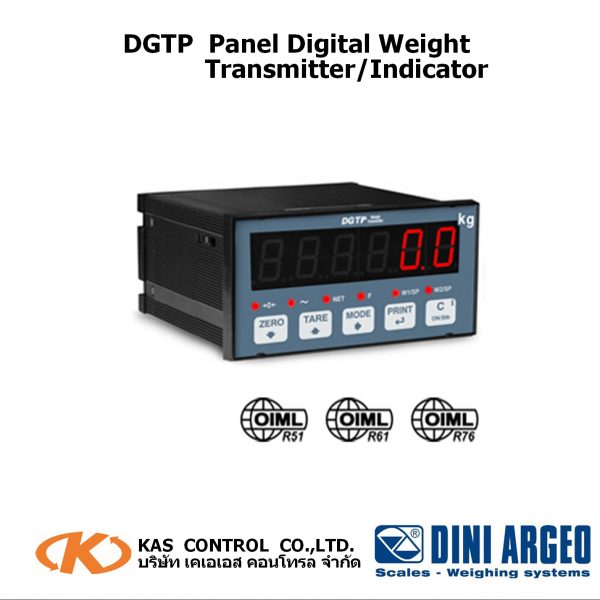

DGTP Panel Digital Weight Transmitter / Indicator

Multipurpose weight transmitter for panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Wide range of available interfaces.

MAIN FEATURES

• MAIN CERTIFICATIONSEasy to use 5-key waterproof keyboard.
• Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
• Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 140mm (lxhxw).
• A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
• Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
• Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
• Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
• Up to 8 signal linearization points with DINITOOLS (3 from keypad).
• Fitted real time clock.
• From 12 Vdc to 24 Vdc power supply

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76
• OIML R61 – MID
• OIML R51

I/O SECTION

• 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
• 1 RS232/C bidirectional port configurable for connection to printer.
• PROFIBUS serial interface (DGTPPB model).
• 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
• 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
• 16-bit analogue output (DGTPAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice.
