Product Description

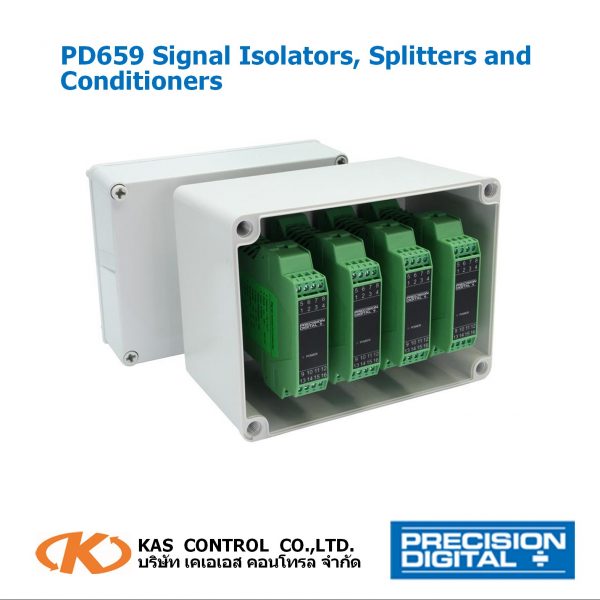

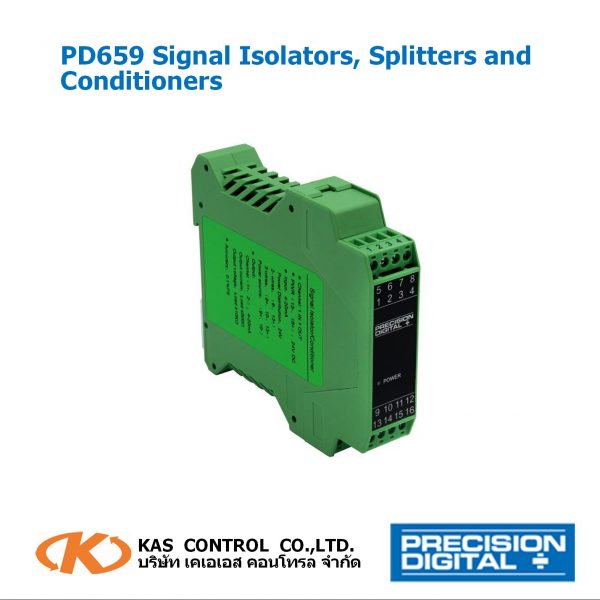

PD659 Signal Isolators, Splitters, and Conditioners

Features

• DIN Rail Mounting
• 1500 V Isolation
• Inputs: 4-20 mA, 0-10 V
• Outputs: 4-20 mA, 0-10 V
• Single Input & Single or Dual Outputs
• 0.1% FS Accuracy
• Operating Temperature Range: -4 to 131°F (-20 to 55°C)

Technical Specifications

Input Ranges: (based on model) 4-20 mA, 0-10 V
Output Ranges: (based on model) 4-20 mA, 0-10 V
Accuracy: 0.1% FS
Power: 24 VDC ±10% @ 50 mA
Isolation: 1500 V AC / 1min (between input-output-power)
Isolation Resistance: ≥ 100 MΩ (between input-output-power)
Input Impedance: 50 Ω, ±1% for 4-20 mA input and 700
Temperature Drift: 0.005% FS/°C (-20 to 55°C)
Connections: De-pluggable screw terminals
Isolated Loop Supply (on mA models): 10 V ±10%
Maximum Signal Output Current (on mA models): 25 mA
Minimum Signal Output Current (on mA models): 0.3 mA
Response Time: < 10 ms
Output Load Resistance: RL ≤ 500Ω (output current signal), RL ≥ 10KΩ (output voltage signal)
Output Ripple: ≤ 0.5% RO
Operating Temperature: -4 to 131°F (-20 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Relative Humidity: 0 to 80% non-condensing
