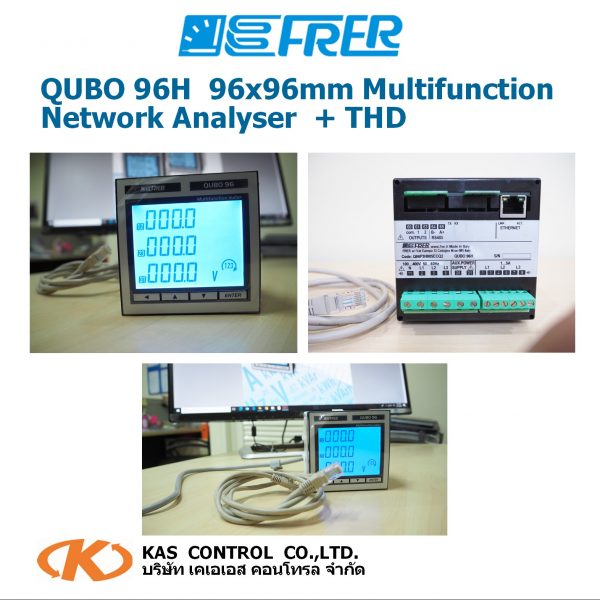

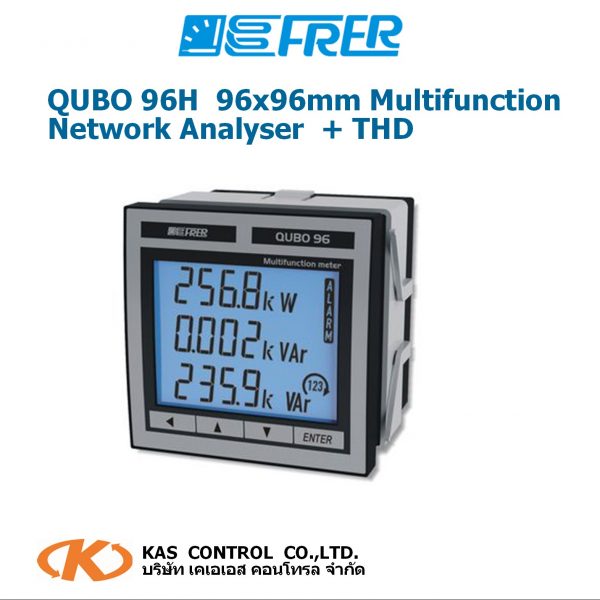

QUBO 96H Multifunction Network Analyser +THD

Product Description

QUBO 96H Multifunction Power Meter

Multifunction network analysers suitable for three-phase, three or four wires unbalanced load systems. The QUBO 96h version performs also “advanced” measurements, which allow a very efficent monitoring and provide additional information about the system operating conditions, also by means of different communication protocols

New QUBO 96 analysers are available with the following communication interfaces:
– Modbus RTU
– Profibus DPV0
– Ethernet Modbus/TCP &  WEBSERVER with internal memory for measurements logging
– Ethernet GATEWAY function, which permits the serial connection of up to  31 additional network analysers with RS485 Modbus
– IEC61850 communication protocol for supervision, control and protection of generation, transmission and distribution systems.

Basic accuracy ± 0,2%

Line current L1 – L2 – L3 – SYS
Star voltage L-N L1 – L2 – L3 – SYS
Delta voltage L-L L1 – L2 – L3 – SYS
V and I unbalance SYS
Neutral current SYS
Active power L1 – L2 – L3 – SYS
Reactive power L1 – L2 – L3 – SYS
Apparent power L1 – L2 – L3 – SYS
Power factor L1 – L2 – L3 – SYS
Cos Displacement power factor L1 – L2 – L3 – SYS
Bidirectional active energy
Partial active energy
Bidirectional Reactive energy
Thermal current L1 – L2 – L3
Maximum thermal current L1 – L2 – L3
Average power SYS
Maximum demand (kw) SYS
Switchboard internal temperature
Total hours run
Phases sequence
THD V and I up to 32th harm. L1 – L2 – L3

Data sheet
