Product Description

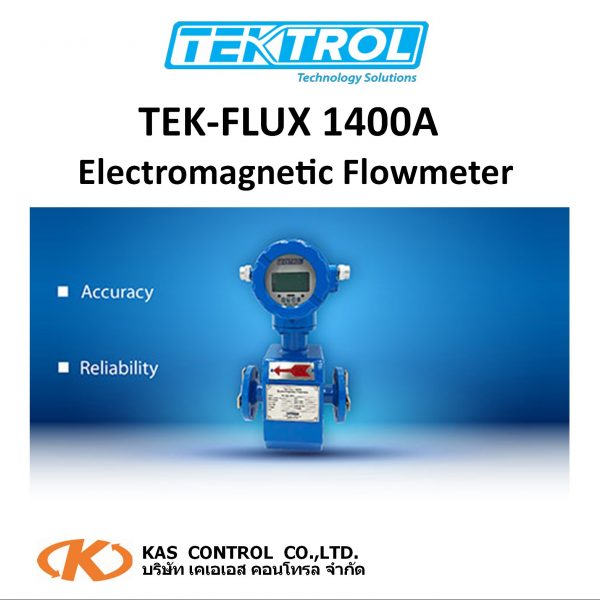

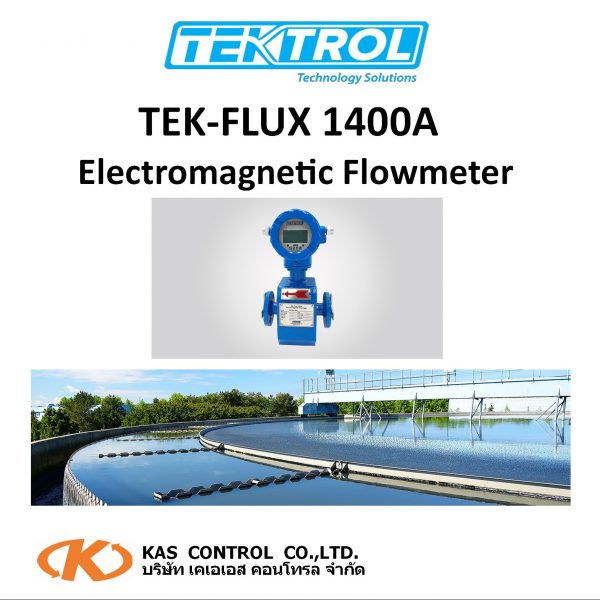

TEK-FLUX 1400A SERIES ELECTROMAGNETIC FLOW METER
Features
- Wide range of nominal diameter Size ½” to 28” (15 mm to 700 mm) with IP68 protection
- Easy maintenance due to no moving parts
- Uninfluenced by temperature, pressure, viscosity, and density
- Used for wide application, can measure conductive fluid, without reference to fibre, solid or suspending material contained in liquid
- High turndown ratio up to 1:100
- It features high intelligence, with back light LCD display, menu setting control, three grades password protection, two-way measuring, slight signal removal, auto flow compensation, and other function.
- Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions, and safety alarms for upper and lower limit
- Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption
- Lining and electrode available in various materials which can measure nearly all conductive fluids
- It has multiple signal output, pulse, Modbus RS485 or HART® or 4 to 20 mA
- The power supply system has good voltage vibration ability
- Meters Batching and Blending Totalization
Specifications
Service | Compatible conductive liquids |
Measuring Range | For flow range please refer the catalog |
Lining Materials | PTFE and Synthetic rubber |
Electrode Material | Stainless Steel, Hastealloy C |
Accuracy | ±0.5% |
Repeatability | 0.15% |
Ambient Temperature Limits | Sensor (Remote Mount): -4 °F to 158 °F (-20 °C to 70 °C) |
Converter: -4 °F to 122 °F (-20 °C to 50 °C) | |
Integral Type: 14 °F to 122 °F (-10 °C to 50 °C) | |
Ambient Magnetic Field | ≤ 400 A/m |
Pressure Limit | ≤ 150 PSI |
Mounting Orientation | Horizontal or vertical |
Process Connection | #150 ANSI or AWWA flanges |
Output Signal | Pulse and 4 to 20 mA or Modbus RS485 or 4 to 20 mA with HART |
Power Requirements | 18 VDC to 28 VDC or 85 VAC to 220 VAC |
Conductivity | ≥5 μs/cm |
Enclosure Rating | IP68 |
Weight | Refer catalog for net weight |
Agency Approvals | CE |
