Product Description

” Dini Argeo “

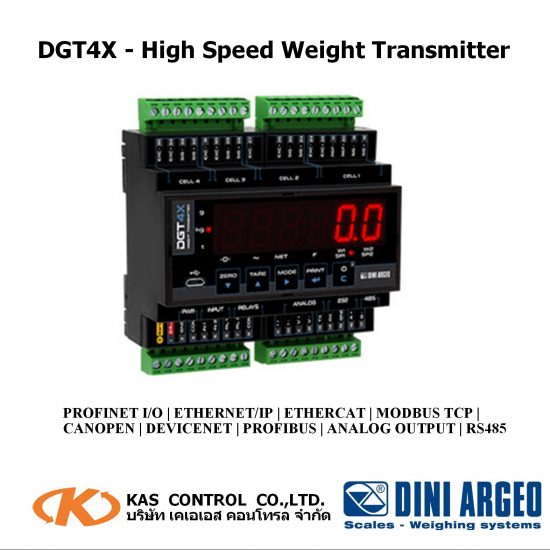

DGT4X – High Speed Weight Transmitter

Weight transmitter for weight transfer to PLC via fieldbus, analog output or RS485.
It allows the reading and diagnostics of each load cell or each connected scale.

Available versions:
PROFINET I/O | ETHERNET/IP | ETHERCAT | MODBUS TCP | CANOPEN | DEVICENET | PROFIBUS | ANALOG OUTPUT | RS485

Integrated WebServer as standard for configuration, diagnostics and data backup.

ONBOARD WEB SERVER

• The integrated WEB SERVER allows complete diagnostics, calibration and remote configuration of the weight transmitter from the Ethernet network.
• Only for PROFINET, ETHERNET/IP and MODBUS TCP/IP models.

What’s new compared to DGT4

• New cutting-edge processor, able to process up to 2600 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing times in the order of milliseconds.

• Frontal micro-USB communication port for configuration, diagnostics and data backup.
• XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
• 14.2 mm display.
• XSPEED TOOL: New PC software with oscilloscope function for system diagnostics and weighing filter optimization.
• 14.2 mm display.
• New configuration menu to simplify calibration and configuration.
• RS485 communication port always available on all versions.
• Up to 120 fieldbus updates per second.

TECHNICAL FEATURES

• Power supply: 12-24Vdc
• Converter: A/D 24 bit with 4 channel
• Max scale number: 4
• Load cells connection: 4 or 6 wires (with sense)
• Operating modes:

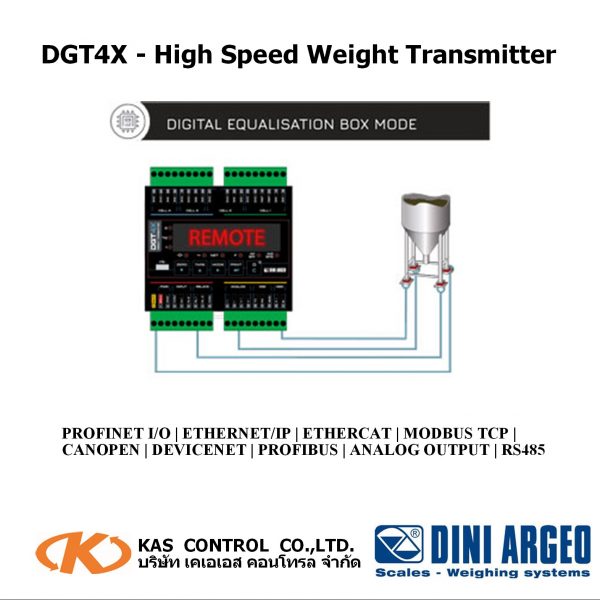

  – Digital junction box

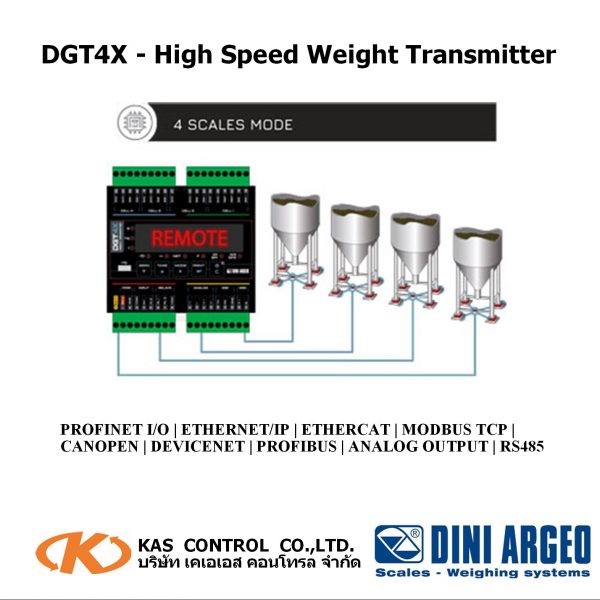

  – Multi-scale transmitter
  – Single-scale transmitter
• Conversion rate: up to 3200 conv./sec
• Selectable sampling rate: up to 2600 conv./sec
• Fieldbus update rate: up to 120 Hz
• Displaying: up to 1.000.000d
• Signal sensitivity: 0,03 µV/d (0,3 µV/e)
• Resolution: 3.000.000 counts
• Linearization: up to 8 points
• Connectable load cells: up to 16 350 Ω cells
• Fieldbus: Profibus, Profinet, EthernetIP, EtherCAT, EthernetIP, CANopen, DeviceNet, Modbus TCP/IP.
• Serial ports:
  – 1 Micro-USB port (device) for PC configuration with “Dinitools®” and “XSpeed Tool”.
  – 1 RS485 port
  – 1 RS232 port (Mod. DGT4X / DGT4XAN)
• Analog output: 16 bit (DGT4XAN Model) 4-20mA or 0-10Vdc.
• Digital outputs: n. 2 configurable OUTPUTS
• Digital inputs: n. 2 configurable INPUTS
• Certifications:
  – OIML R76 (10000e or 3000 + 3000e) / R51 / R61 MID
  – UL Listed (upon request)
  – EU Type Examination Certificate (45501:2015)
• Case: ABS, for Din bar (106 x 56 x 118 mm)
• Calibration:
  – Theoretical (mV\V)
  – With sample weights
  – Remotely by WEB SERVER
  – From the keyboard
  – From PC with “Dinitools”
• Keyboard functions:
  Zeroing, Tare, Function mode, Manual data printing/sending, ON/Stand-by
• Program functions:
  Setpoint, High resolution, Peak, Alibi Memory, Unit of measure conversion
• Keyboard: mechanical with 5 digits
• Display: 14,2mm red LED

Available versions
