Product Description

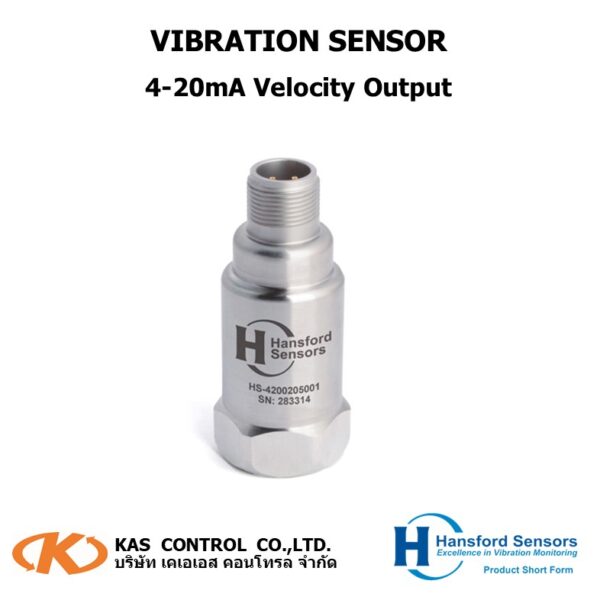

HS-420 Accelerometer
4-20mA velocity output via 2 Pin MS Connector

Key Features :

• For use with PLC/DCS systems
• Customisable features

Industries :
• Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

Applications :

• Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment
Vibration sensor should be firmly fixed to a flat surface
(spot face surface may be needed to be produced and cable anchored to sensor body.)

Technical Performance :

• Mounted Base Resonance : 5kHz min

• Velocity Ranges : see: ‘How To Order’ table ±10%  Nominal 80Hz at 22°C

• Frequency Response : 10Hz (600cpm) to 1kHz (60kcpm) ± 5% – ISO10816

• Isolation : Base isolated

• Range : 50g peak

• Transverse Sensitivity : Less than 5%

Data sheet
