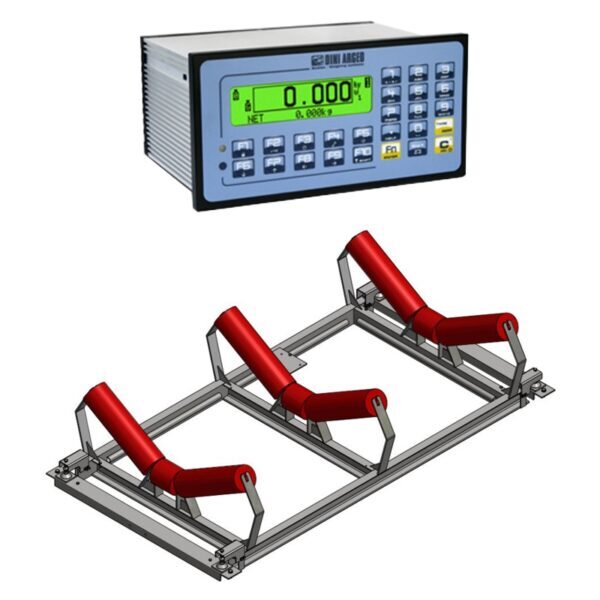

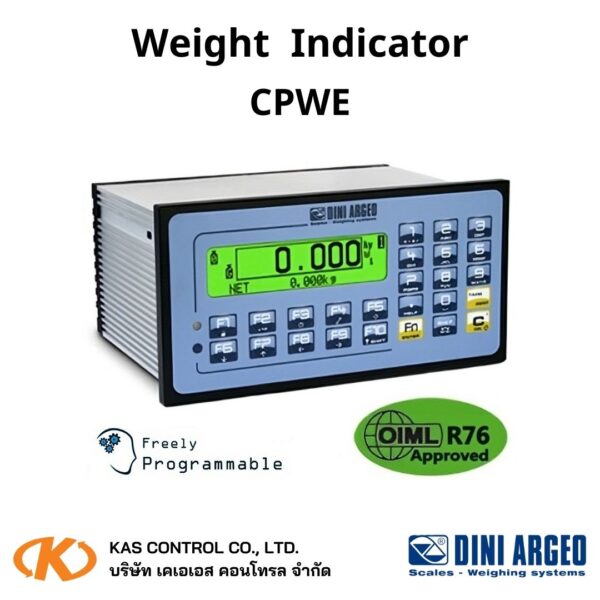

Product Description

MAIN FEATURES
– Waterproof 25-key numerical functional keyboard, which allows to easily enter the target, alphanumeric texts, codes, etc.;
– Programmable function keys, for customising the keyboard functions according to the needs.
– Easy to consult backlit graphic LCD display, with a clear visualisation of the weight and of the automation status; selection of the language from the menu.
– Anodised aluminium case according to DIN norms, with dimensions of 202x105x147.7mm; 187x90mm template for panel board mounting.
– IP65 front panel protection, against dust and water sprays.
– Real time clock and permanent data memory.
– Integrated alibi memory for CE-M communication with PC and printer.
– Calibration and Set-Up parameters, configurable from PC with Dinitools or with the keyboard; theoretical calibration with the entry of the characteristics of the load cells.
– Connectable with up to 16 analogue load cells with 350 Ohm input resistance (45 1000 Ohm cells) and to the main digital load cells available on the market. Filtering system through
programmable software, adjustable according to the system.

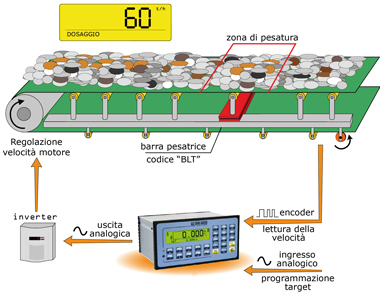

– Management of a weighing system with digital equalisation of the 4 cells or management of up to 4 independent weighing systems (depending on the application software).
– Power supply: from 8Vdc to 40Vdc and, upon request, 100-240Vac (with the ALSW optional external power supplier).
– Operating temperature: from -10 to +40°C.
– Connectable to printers and labellers through the available command drivers.

MAIN CERTIFICATIONS
– EU Type Examination Certificate (45501:2015)
– OIML R76
– OIML R51 – MID

I/O SECTION
– 2 RS232 serial ports
– RS232/RS485 port
– Keyboard emulation input
– 16 optoisolated electronic outputs
– 8 optoisolated inputs
