Product Description

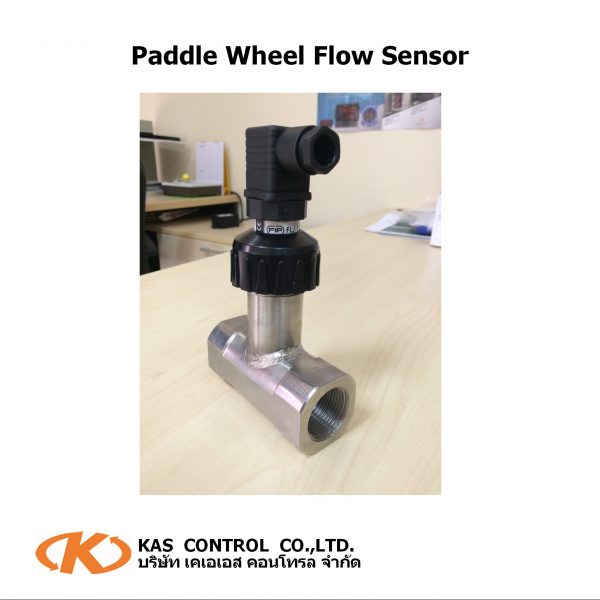

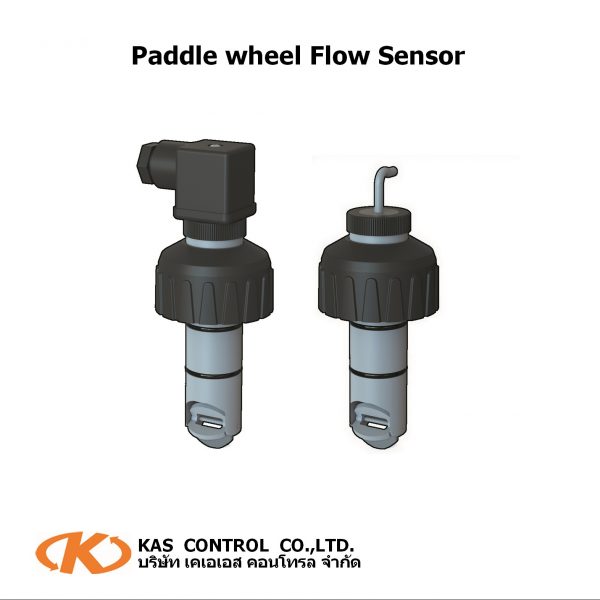

The simple and reliable paddlewheel flow sensor type F3.00 is designed for use with every kind of solid-free liquids.

The sensor can measure flow from 0.15 m/s (0.5 ft/s) producing a frequency output signal highly repeatable.

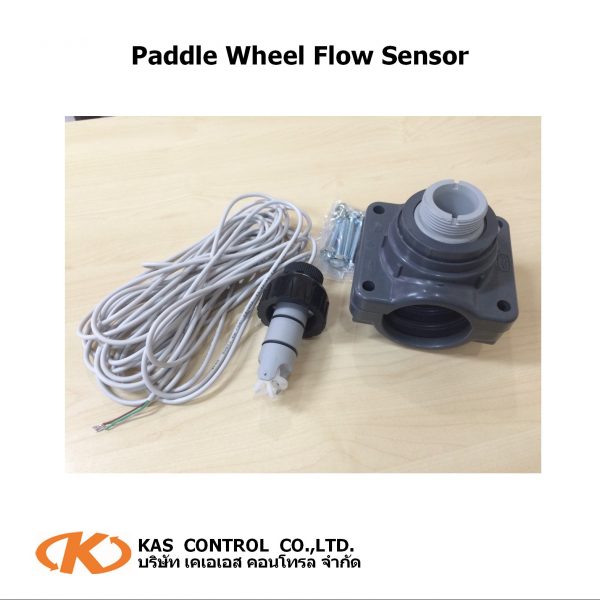

A specially designed family of fittings ensures an easy and quick installation into all pipe materials in sizes from DN15 to DN600 (0.5” to 24”).

TECHNICAL DATA

General
• Pipe Size Range: DN15 to DN600 (0.5” to 24”)
Please refer to Installation Fittings section for more
details
• Flow Rate Range: 0.15 to 8 m/s (0.5 to 25 ft./s)
• Linearity: ± 0.75 % of full scale
• Repeatability: ± 0.5 % of full scale
• Minimum Reynolds Number Required: 4500
• Enclosure: IP68 or IP65
• Wetted Materials:
– sensor Body: C-PVC, PVDF or 316L SS
– o-rings: EPDM or FPM
– rotor: ECTFE (Halar®)
– shaft: Ceramic (Al2O3)/316L SS (for metal sensors)
– bearings: Ceramic (Al2O3), none (for metal sensor)

Applications

• Water treatment and regeneration
• Industrial wastewater treatment and recovery
• Textile finishing
• Water distribution
• Processing and manufacturing industry
• Filtration systems
• Chemical production
• Liquid delivery systems
• Cooling water monitoring
• Heat Exchangers
• Swimming pools
• Pump protection
