Product Description

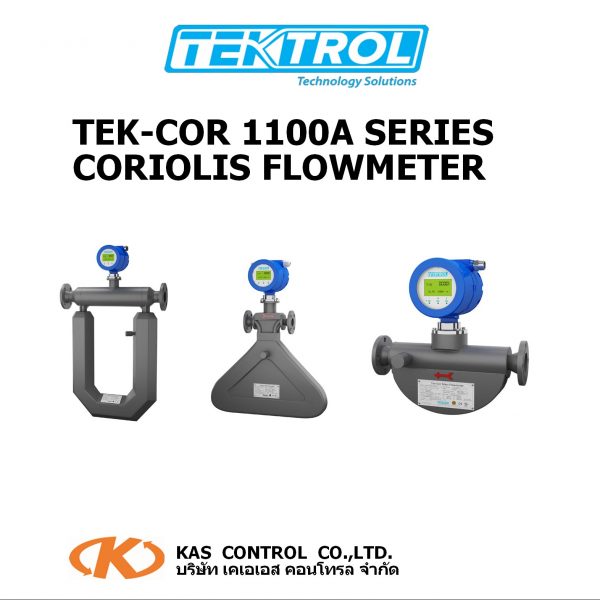

Coriolis mass flowmeters
Features :
- Suitable for aggressive and contaminated media.
- Measurement and Display of percent water-cut for oil or water mixtures.
- High Phase Shift Frequency.
- Measuring tubes vibrated at natural frequency.
- Higher Sampling and Digital Filtering.
- Short response time.
- No moving parts.
- Full Sensor Diagnostics.
- Measures mass flow, density, temperature, and volume flow with high accuracy.
- OLED with 2 line display.
- Multiple Flange (150# To 900#) and Process Connections.
- Net Oil Measurement.
- Density accuracy upto 0.001 g/cm3.
- Suitable for harsh conditions.
- Process Temp Ranges From -200 to 300°F.
- Ul Class I Div I and NTEP Approved
Specifications :
| Service | Liquids and Gas |
| Size | U shaped: 1½” to 8″ |
| Microbend: ½” to 8″ | |
| Triangle: ½” to 1″ | |
| Measuring Ranges | For mass flow rates please refer the catalog |
| Maximum Pressure | 3770 PSI (26 MPa), 5800PSIG (40MPa) available |
| Accuracy | 0.1% or 0.2% or 0.5% |
| Density Measuring Range | 2 to 30 lb/gal (0.2 to 3 g/cm3) |
| Density Basic Error | ±0.02 lb/gal (±0.002 g/cm3) |
| Density Repeatability | ±0.01 lb/gal (±0.001 g/cm3) |
| Repeatability | For 0.1% accuracy : ±0.05% |
| For 0.2% accuracy: ±0.1% | |
| For 0.5% accuracy: ±0.25% | |
| Temperature Limits | Direct Mount: -58 °F to 257 °F (-50 °C to 125 °C) |
| Remote Mount | -58 °F to 392 °F (-50 °C to 200 °C) |
| Power Requirements | 18 VDC to 28 VDC or 85 VAC to 220 VAC |
| Output signal | 4 -20 mA or Pulse, Optional: HART or Modbus RS485 |
| Process Connection | As per DIN or ANSI, Tri-Clamp or Threads |
| Enclosure Rating | NEMA 4x (IP67),7,9 |
| Agency Approvals | UL,CE,NTEP and HMO |
