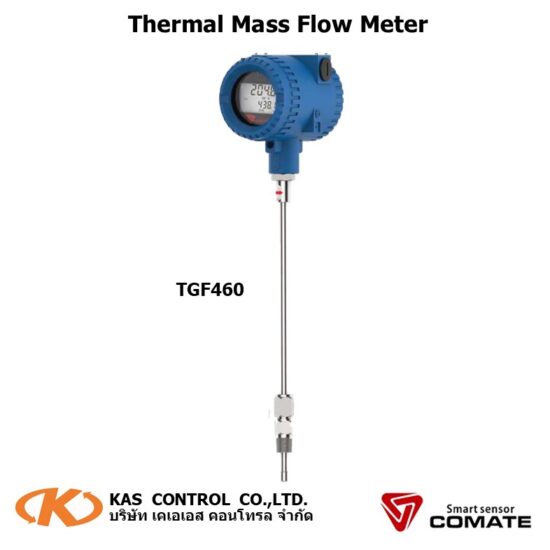

Thermal Mass Flow Meter TGF460

Product Description

Specification

■ Media Compatibility : Air, Nitrogen

■ Pipe diameter : Insertion: DN25 ~ DN 40 0

■ Inline: DN25 ~ DN3 00

■ Accuracy : 1.5% RD ± 0.5% FS

■ Ingress protection grade : IP 65

■ Power supply : AC85~264V or DC16~32V

■ Output : Frequency and 4~20mA as standard



Special features

■ Direct mass flow or normal flow measurement
■ 100:1 turn down ratio in 5 ranges: 0.3~30 Nm/s, 0.6~60 Nm/s,
0.9~90Nm/s , 1.2~120Nm/s, 1.5~150Nm/s,1.8~180Nm/s
■ Large LCD screen with dual-line display and 3 setting button. Easy to read or set
■ Low cost economical model.
■ No pressure loss, suitable for pipe in any shape with known sectional area
■ Available for hot tapping installation
■ High accuracy data acquisition circuit to ensure outstanding repeatability and accuracy of the flow meter
■ High efficiency design of power supply, the total power consumption is only 60mA@24VDC
■ 15V~32V wide voltage range input to fit in all electricity environment
■ Self-diagnose function makes trouble shooting easier
