Product Description

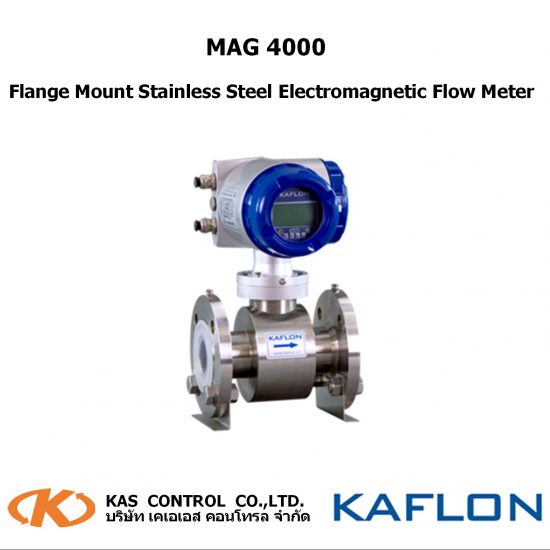

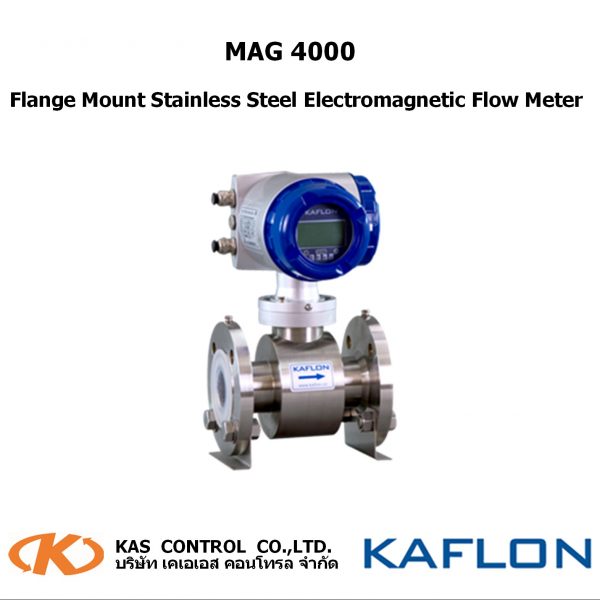

MAG 4000 Flange Mount Stainless Steel  Electromagnetic Flow Meter

Applications:

– Corrosive Liquid

– Chemical industries

– Pharmaceutical industries

– Food and beverage industry

– Pulp and paper industry

– Petroleum Industry

Features & Specifications

• performance, polished stainless steel,full welding
• Flow transmitter: MT200 (std.);MT200HD (opt.)
• Diameter: DN10-DN200mm
• Lining: FEP
• Flow sensor housing material:88304 (std.) ; 88316 (opt.);

• Temperature class: 80 C Class;120C Class; 180C Class

• Protection class: IP65 (std.); IP68 (opt.);IP67 (opt.)
• Power supply: 85-240VAC; 20-36VDC ;Lithium battery

Data sheet
