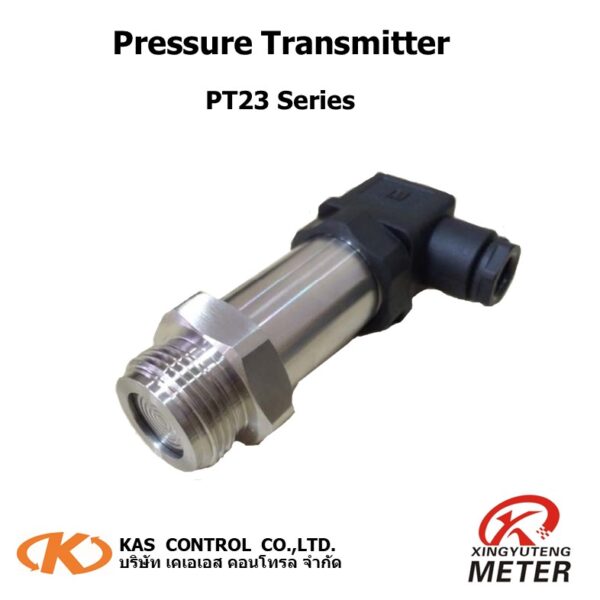

Pressure Transmitter

Product Description

Product Description

PT23 series pressure transmitter is a high reliability of industrial-grade product with standardization and modularity which adopted in the design of high precise pressure core, precise compensation technology and fabrication. It is entirely made of stainless steel structure with wide measurement range, high accuracy and optional field display features. It’s suitable for fluid and gas pressure to measure precisely and control in various fields.


Product Features

* High accuracy, cost-effective
* High reliability
* Wide measurement range
* Field display(optional)

Application Fields

* Hydraulic systems
* Engineering machinery
* Oil & chemical
* Food, medicine


Performance Parameter

  • Pressure ranges : -0. l-0-60MPa ( optional)
  • Accuracy : 0.25%FS ,0.5%FS
  • Output signal : 4-20mA , 0/1-5/lOV, 0.5-4.5V, RS485
  • Supply voltage : 5 VDC,24VDC, 9~36 VDC
  • Pressure connector : G 1/4, l/4NPT,Rl/4,G 1/8,G l/2,M20* 1.5 or customize
  • Temperature : 0-85°C
  • Operating temperature : -20-100°C
  • Housing material : SS304,316L
Data sheet
