CPX SERIES LOW PROFILE LOAD CELLS

Product Description

” Dini Argeo “

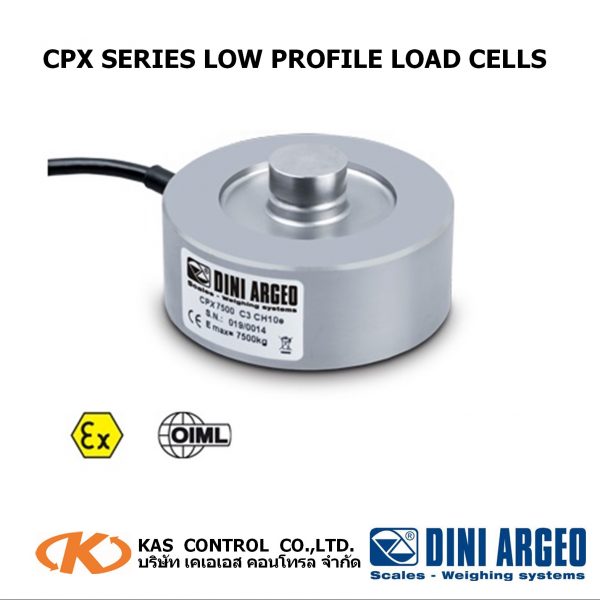

CPX SERIES LOW PROFILE COMPRESSION LOAD CELLS

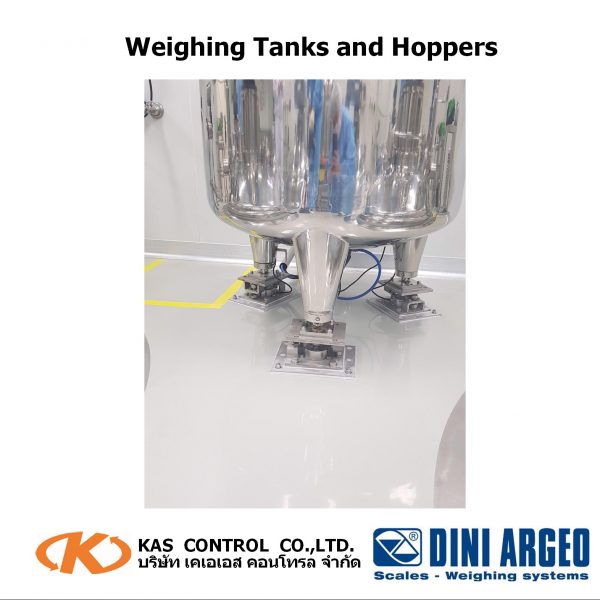

Stainless Steel Compression load cells suitable for weighing tanks and hoppers with the relevant accessories.


CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000.


OIML R60, C3 precision class from 2500 to 12500kg.


Stainless steel. IP68/IP69K protection.


MAIN FEATURES

  • CAPACITIES FROM 250 TO 100000 kg
  • CE-M C3 APPROVED, from 2500 to 12500 kg
  • LOW PROFILE
  • GREAT RESISTANCE TO LATERAL FORCES
  • STAINLESS STEEL CONSTRUCTION
  • IP68 PROTECTION, IP69K UPON REQUEST
  • SHIELDED CONNECTION CABLE

TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10000
  • Full Scale Output: 2mV/V +/- 0,5%
  • Non-Repeatability: 0,01% F.S.
  • Combined Error 0,05%
  • Temperature effect on zero: 0,02% / 10°C
  • Temperature effect on full scale output: 0,02% / 10°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance: 750 ± 10 Ohm
  • Output Resistance: 700 ± 5 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 120% F.S.
  • 4-wire shielded cable, 5 mm diameter:
    – 5 m long for CPX 250…5000 versions;
    – 10 m long for CPX 7500…100000 versions.
