Product Description

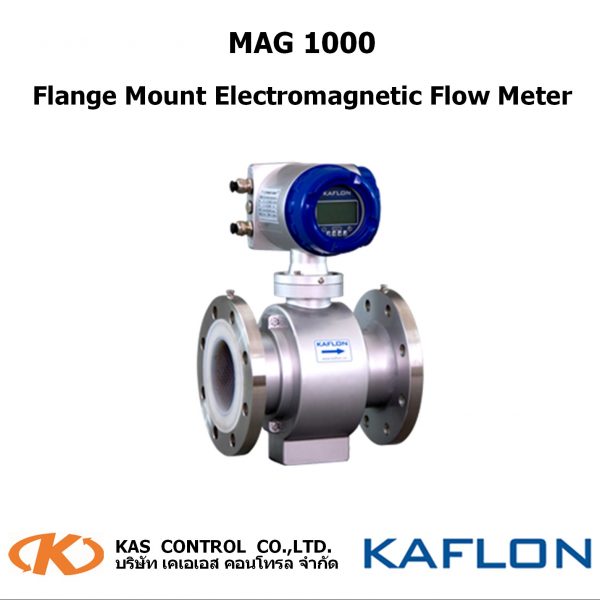

MAG 1000 Flange Mount Electromagnetic Flow Meter

Applications:

– Water and waste water

– Chemical industry

– Pharmaceutical industry

– Mining, aggregates and cement industries

– Pulp and paper industry

– Steel industry

– Power; utility and chilled water industry

Features & Specifications

• Desing for most application, flange connection type, high performance

• Diameter:  DN1O-DN2200mm
• Lining: FEP (DN10-DN500),Chloroprene Rubber,PU (DN10-DN500)

• Accuracy: 0.5% of Reading
• Calibration flow range: 0.5-10m/s; Measured  flow range: 0.2-10m/s

• Flow sensor housing material: Cast aluminum(DN10-DN100); Carbon steel (DN125-DN2200)

• Temperature class: 80 C Class; 120 C Class; 180 C Class

• Protection class:IP65 (std.); IP68 (opt.); IP67 (opt.)
• Power supply: 85-240VAC; 20-36VDC;  Lithium battery
