Product Description

” Dini Argeo “

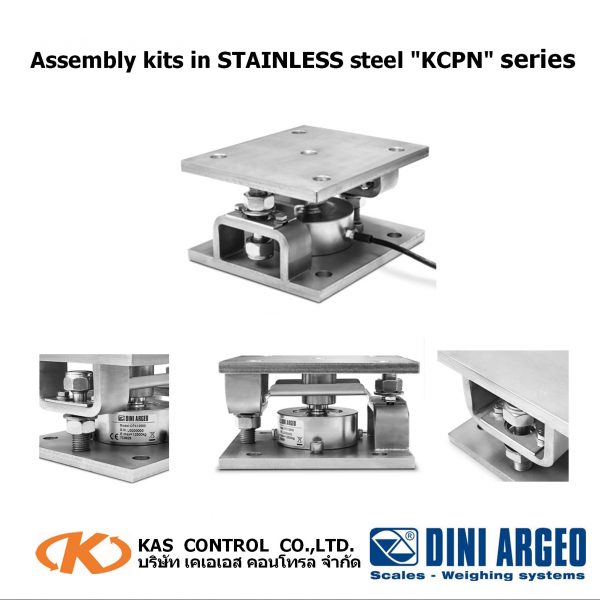

Assembly kits in STAINLESS steel “KCPN” series,

for CPX compression load cells

Assembly kits for compression load cells CP/CPX series up to 100,000kg, suitable for weighing silos, tanks, hoppers of big size.

ADVANTAGES

– Body in STAINLESS steel AISI 304.
– Centering plate.
– Protection against electrostatic discharges.
– Anti-overturn system.
– Locking/bypass system for facilitated transport and maintenance.
– ATEX version available for zones 1&21, 2&22.

MAIN FEATURES

• AISI304 STAINLESS STEEL BODY.
• GREAT RESISTANCE TO LATERAL FORCES.
• NUT FOR MAINTAINING THE RAISED POSITION, FOR EASY INSTALLATION AND/OR SUBSTITUTION OF THE LOAD CELL.
• LIMIT-SWITCH NUTS FOR PROTECTION OF THE LOAD CELLS IN CASE OF OVERLOAD.
• SELF-CENTERING CONNECTION SEGMENT BETWEEN LOWER AND UPPER PLATES.
• DUMMY LOAD CELLS FUNCTIONING FOR THE WEIGHING OF LIQUIDS.
