Product Description

1. Mainly used for steam, gas, water
2. With 4-20mA, RS485, HART output
3. Easy to install and maintain,shock resistant
4. Various structural forms, flange type, wafer type,insertion type.

Description

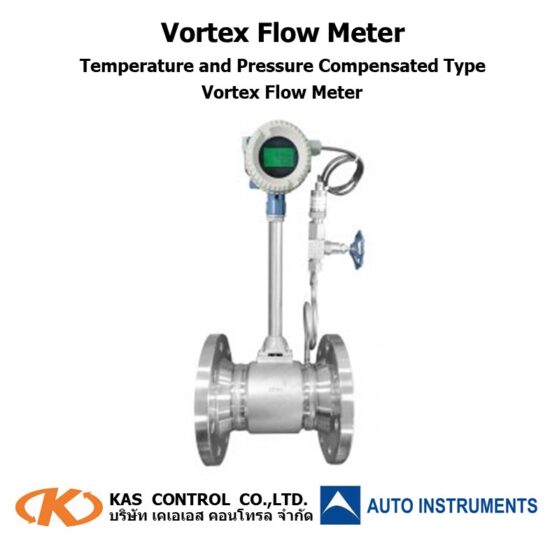

Vortex flow meter is one kind of velocity type flow meter, it’s based on Karman vortex theory and adopts piezoelectric crystal to detect the burble frequency of the fluid caused by flowing through the triangular prism in the pipeline and then measure the flow of fluid. It is widely used in petrol, chemical industry, light industry and power heat supply and so on.

Benefit
♦ Integrated pressure and temperature compensation.
♦ 4-20mA, pulse with HART; Optional pulse with RS485
♦ Wide temperature range up to highest temperature 350℃
♦ Adopt Japan OVAL technology and design
♦ Embedded sensor, 4 piezo-electric crystal encapsulated inside the sensor.
♦ No moving parts, no abrasion, non-wearing parts inside, fully welded SS304 body (Optional SS316)

Standard Specification
● Size : DN15-DN300mm
● Accuracy : ± 1.5%(standard),± 1.0%(optional)
● Power Supply : 24VDC
● Communication : RS485/Modbus, Hart, Profitbus
● Flange Standard : EN1092-1 PN10,PN16,PN25,PN40
ANSI BS16.5 Class 150,300,600 JIS2220 10K,20K,40
● Straight Pipe : Inlet Path ≥ 12D,Outlet Path ≥ 5D
● Signal Output : 4~20 mA,pulse
● Frequency Output : 2~3000 Hz
● Relative Humidity : ≤85%
● Explosion-proof : Exia IIC T6 Gb
● Ambient Temperature :-40℃ ~55℃ (Non Ex-proof Place)
-20℃ ~55℃ (Non Ex-proof Place)
● Nominal Pressure : 1.6 MPa, 2.5 MPa, 4.0 MPa
● Protection Grade : IP65
● Velocity : 0.4~7.0 m/s liquid
4.0~60 m/s gas
5.0~70 m/s steam
● Body Material : SS304(Standard),SS316(Optional)
● Resistance Coefficient : Cd ≤2.6
● Oscillatory Acceleration: ≤0.2g
● Reynolds Number : 2×104~7×106
